Composition

Time​

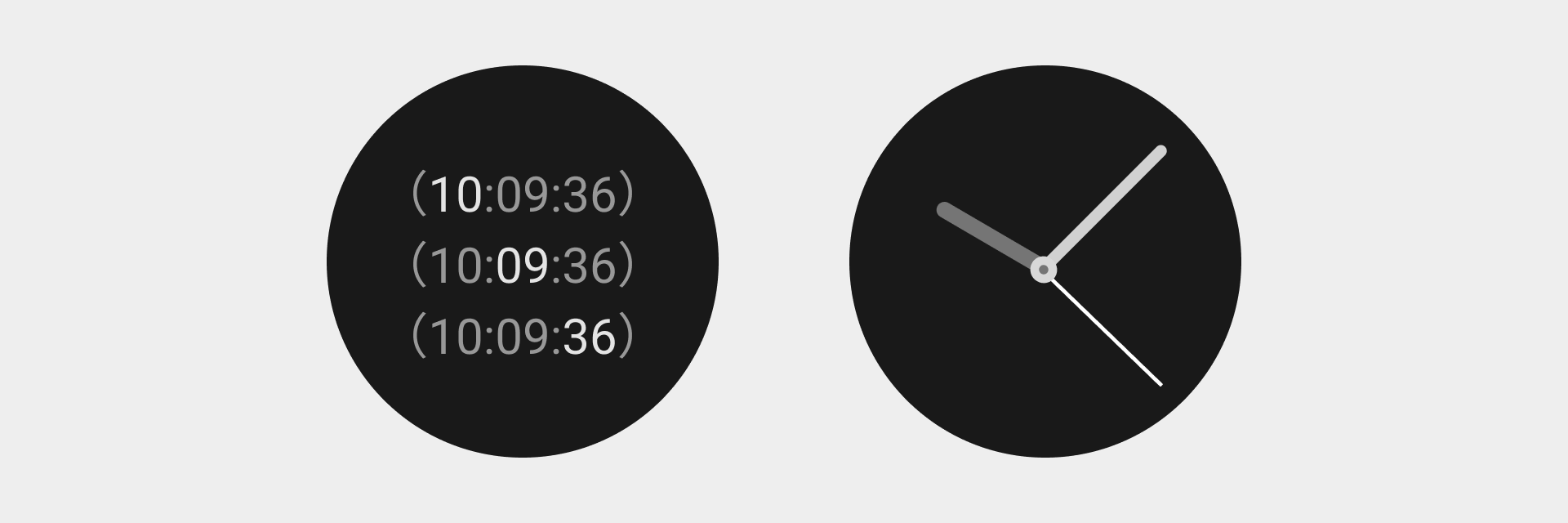

Hours, minutes, and seconds

  • Digits (negative picture-spacing values are supported to achieve cascading effects) and hands.
  • The display order of the watch hands: the second hand is on the top, the minute hand is in the middle, and the hour hand is at the bottom.

Design

AM/PM

  • Text.

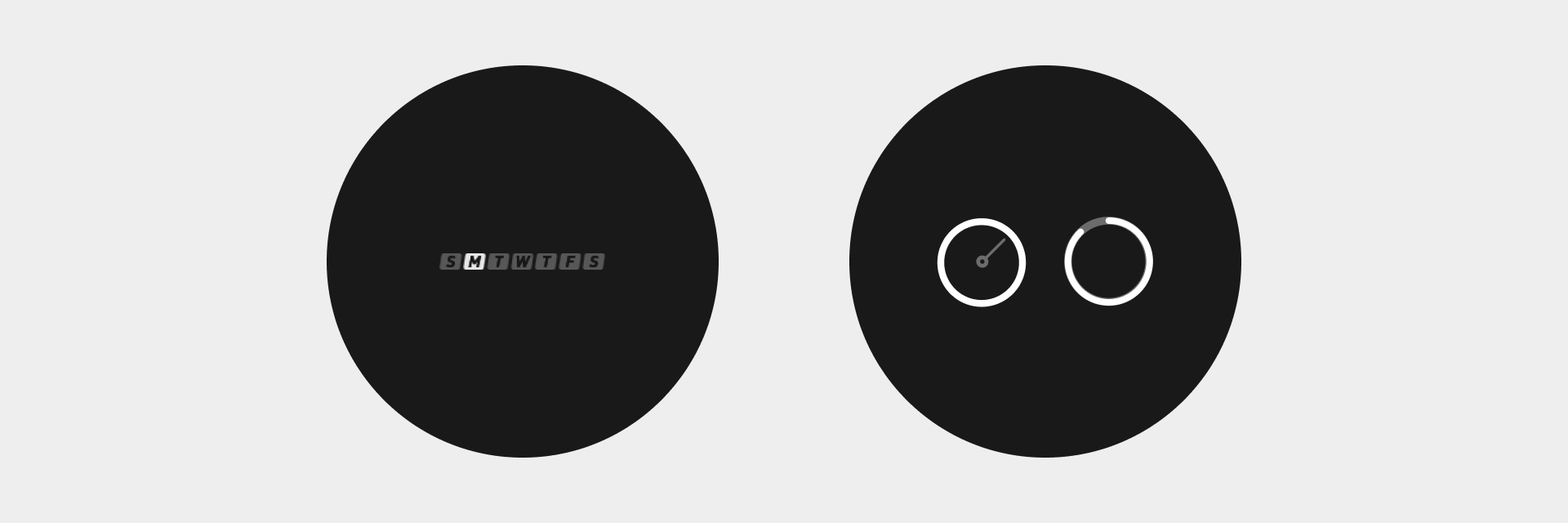

Week

  • Icons, digits, pointer, and progress.

Design

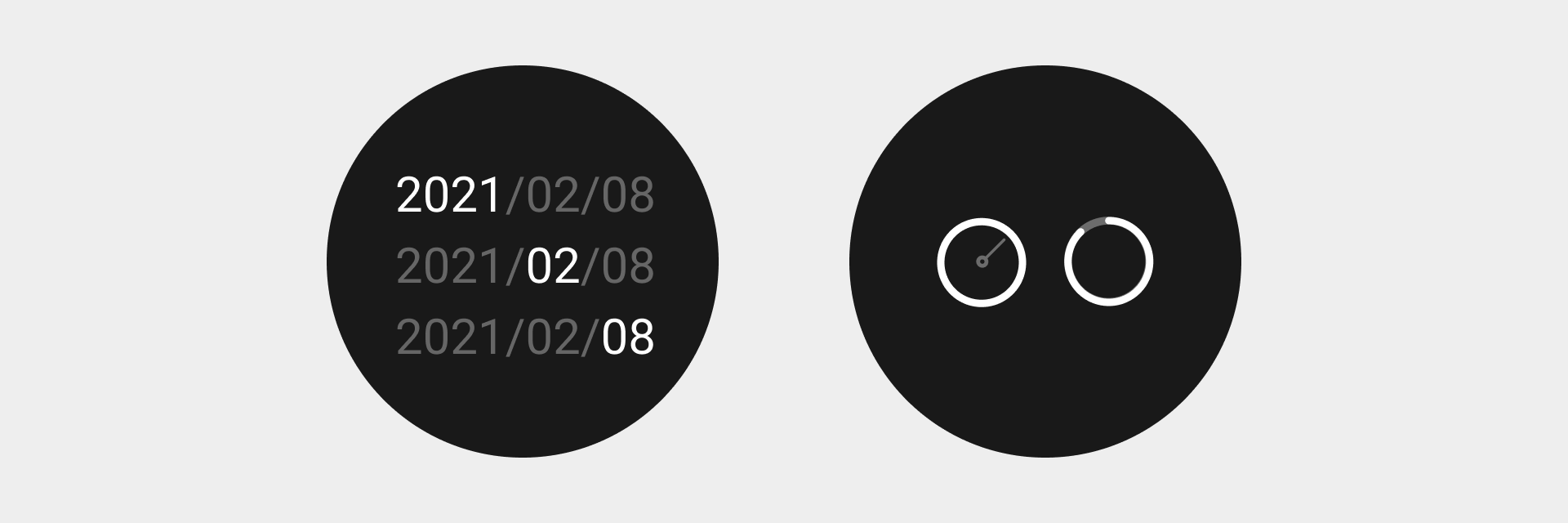

Year/month/day

  • Icons, digits, pointer, and progress.
  • If the Watchface displays the year, it must be displayed in the year/month/day format. Separate display of the year is not supported.

Design

Lunar calendar

  • Text
  • Festivals and solar terms can be configured separately

Design

Workouts​

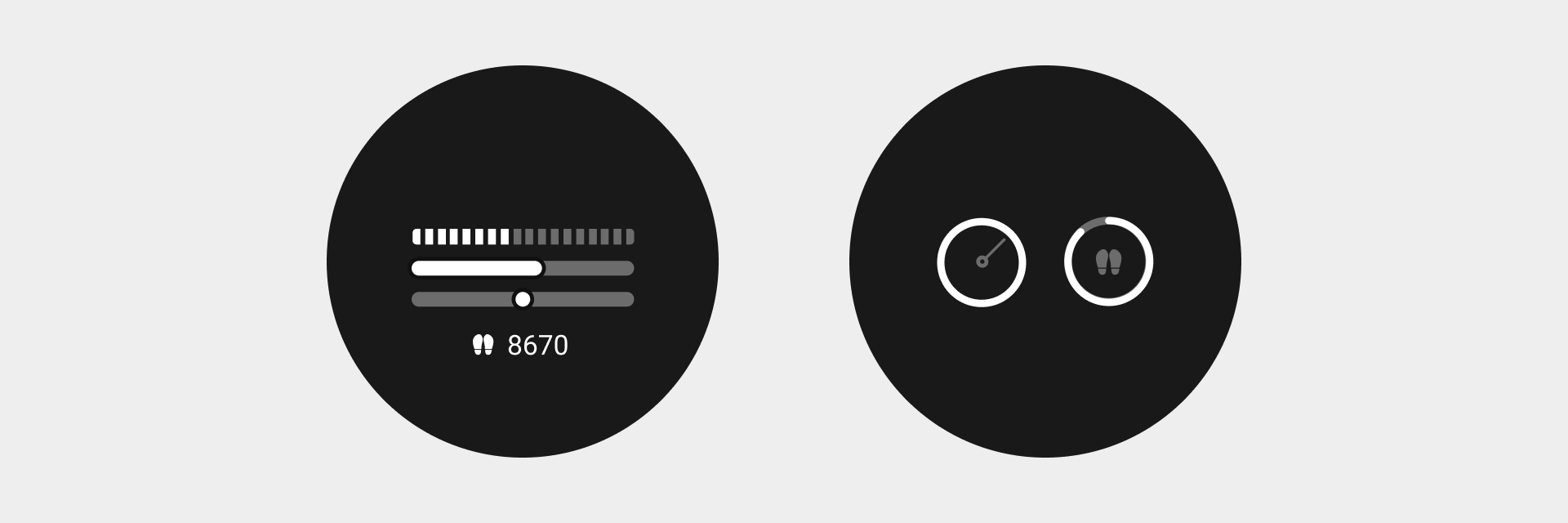

Steps

  • Icons, pictures, digits, hands, and progress.
  • Digital display of steps: up to 5 characters. For example, "00000".
  • Digital display of target steps: up to 5 characters. For example, "00000".
  • Empty state: "0"

Design

Distance

  • Icons and digits.
  • Digital display of distance: up to 4 characters. For example, "0.00", "00.0".
  • Empty state: "0"

Design

Calories

  • Icons, pictures, digits, hands, and progress.
  • Digital display of calorie consumption: up to 4 characters. For example, "0000".
  • Empty state: "0"

Design

Standing

  • Icons, pictures, digits, hands, and progress.
  • Digital display of current standing times: up to 2 characters. For example, "00".
  • Digital display of the standing times within 12 hours.
  • Empty state: "0"

Design

Health​

Heart rate

  • Consists of icons, pictures, digits, hands, and progress.
  • Digital display of heart rate: up to 3 characters. For example, "000".
  • Empty state: "- -"

Design

PAI

  • Icons, pictures, digits, hands, and progress.
  • Digital display of PAI: up to 3 characters. For example, "000".
  • Empty state: "0"

Design

Weather​

Temperature

  • Icons, pictures, digits, hands, and progress.
  • Digital display of real-time temperature: up to 5 characters. For example, "-000°".
  • Digital display of lowest temperature: up to 5 characters. For example, "-000°".
  • Digital display of highest temperature: up to 5 characters. For example, "-000°".
  • Empty state: "- -"

Design

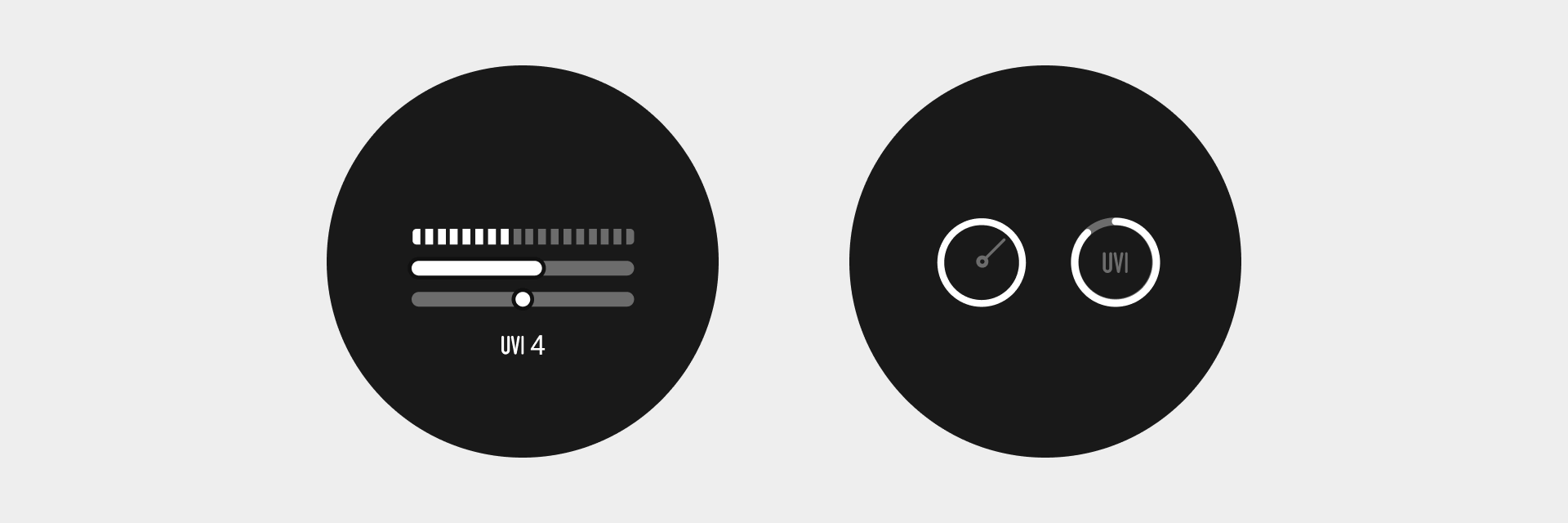

UV ray

  • Icons, pictures, digits, hands, and progress
  • Digital display of UV ray level: up to 2 characters. For example, "00".
  • Empty state: "- -"

Design

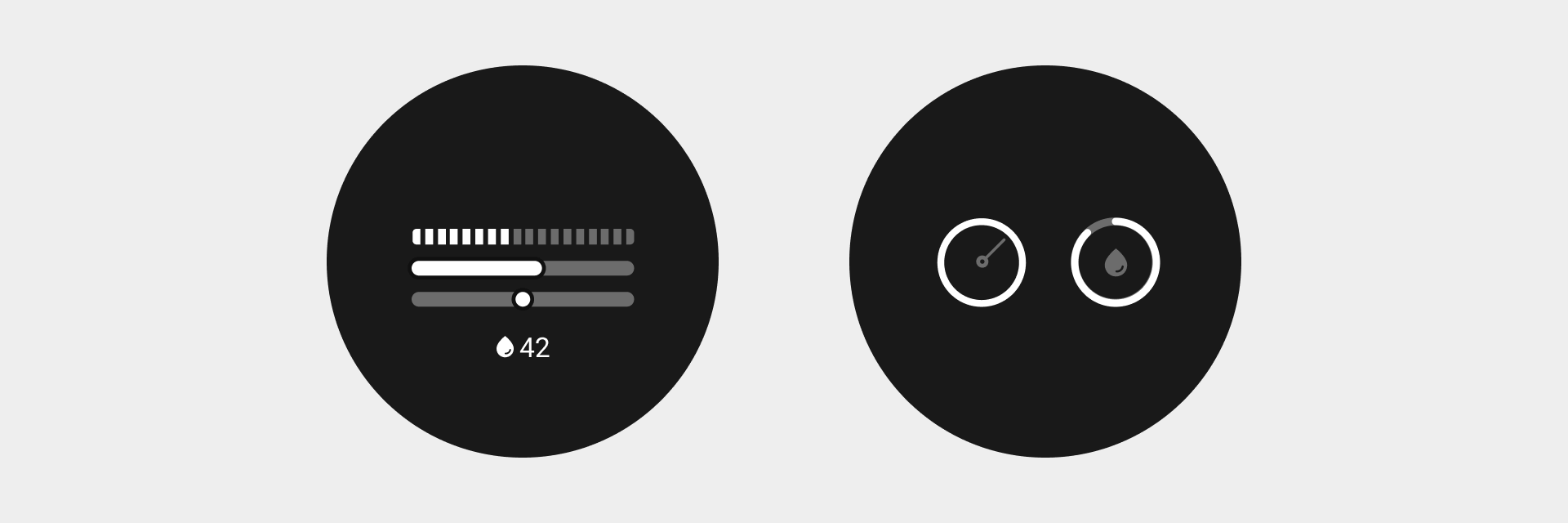

Humidity

  • Icons, pictures, digits, hands, and progress
  • Digital display of humidity: up to 4 characters. For example, "000%".
  • Empty state: "- -"

Design

Air quality

  • Icons, pictures, digits, hands, and progress.
  • Digital display of air quality: up to 3 characters. For example, "000".
  • Air quality display is not supported in regions outside China. Replace it with humidity.
  • Empty state: "- -"

Design

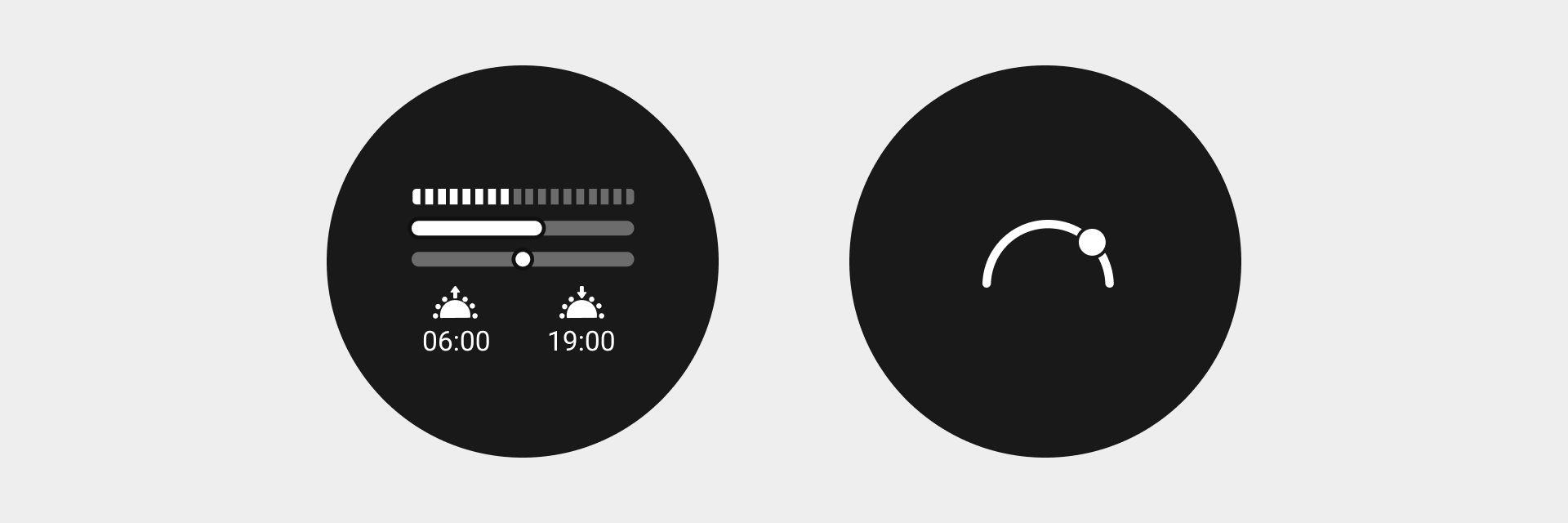

Sunrise and Sunset

  • Icons, pictures, digits, hands, and progress.
  • Current time display: up to 5 characters. For example, "00:00".
  • Sunrise time display: up to 5 characters. For example, "00:00".
  • Sunset time display: up to 5 characters. For example, "00:00".
  • Empty state: "- -"

Design

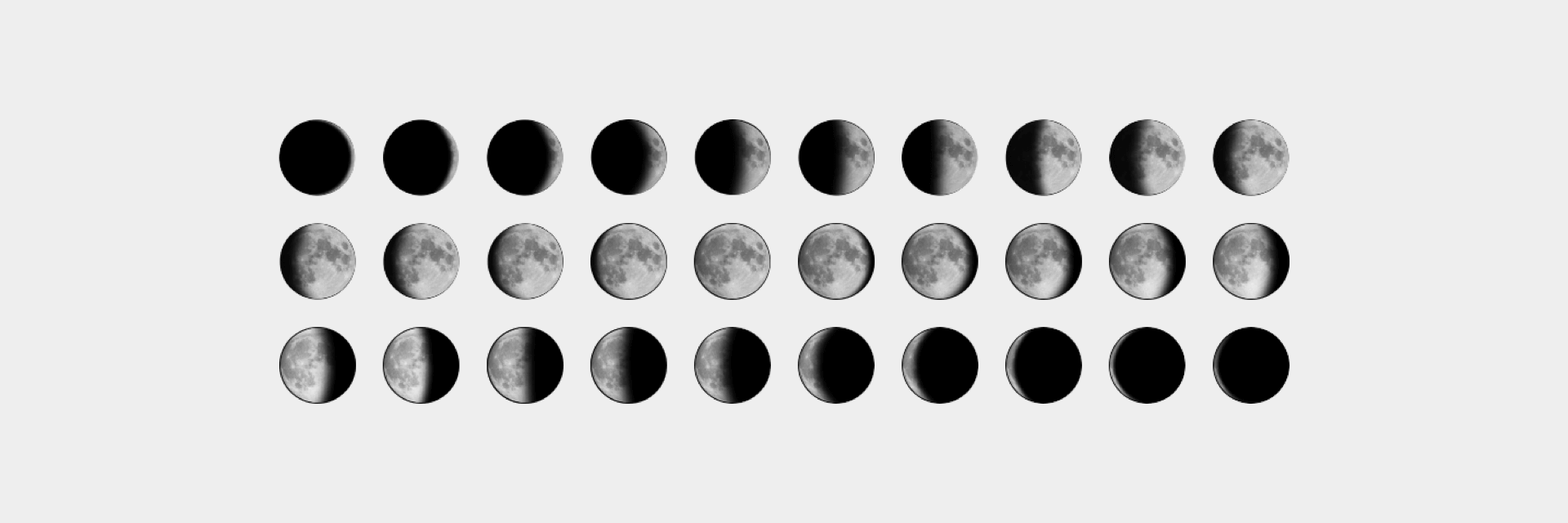

Moon phase

  • Image
  • 7/13/30 Moon phase images

Design

Air pressure

  • Icons, pictures, digits, hands, and progress.
  • Air pressure display: up to 5 characters. For example, "00000".
  • Empty state: "- -"

Design

System​

Battery level

  • Icons, pictures, digits, hands, and progress.
  • Digital display of battery level: up to 4 characters. For example, "100%".

Design

System status

  • Icons.
  • Switch status is required for DND, Bluetooth, screen lock, and alarm clock.

Design
