TIME_PICKER

Start from API_LEVEL 3.6. Please refer to API_LEVEL。

A full-screen widget that supports time and date selection.

Create UI widget

import { createWidget, widget, prop } from '@zos/ui'

const time_picker = createWidget(widget.WIDGET_TIME_PICKER, Param)

Param: object

Properties	Description	Required	Type
type	Selector type, 0 time, 1 date	YES	number
style	Value must be 1	YES	number
title	Title of selector	NO	string
done_icon	Image path of done icon	NO	string
font_size	Font size setting	YES	number
select_font_size	Font size setting for selected item	YES	number
initHour	Initial hour, default is 12	NO	number
initMin	Initial minute, default is 0	NO	number
startYear	Start year, default is 1970	NO	number
endYear	End year, default is 2100	NO	number
initYear	Initial year, default is 2020	NO	number
initMonth	Initial month, default is 1	NO	number
initDay	Initial day, default is 1	NO	number
picker_cb	Callback function of picker	NO	CallBack

CallBack: function

Time/Date picker callback function

picker_cb(picker: WIDGET, event_type: number, column: number, value_index: number): void

Properties	Description
picker	The time/date picker widget instance
event_type	Event type of picker, see EVENT_TYPE
column	Index of current focus column (only valid under UPDATE event type)
value_index	Current value of the column (only valid under UPDATE event type)

EVENT_TYPE Value	Description
0	Cancel selection
1	Update selection
2	Complete selection

Property Operations

The SET and GET means widget.setProperty and widget.getProperty

Property Name	SET/GET	Description
prop.type	-	-
prop.style	-	-
prop.title	-	-
prop.done_icon	-	-
prop.font_size	-	-
prop.select_font_size	-	-
prop.initHour	-	-
prop.initMin	-	-
prop.startYear	-	-
prop.endYear	-	-
prop.initYear	-	-
prop.initMonth	-	-
prop.initDay	-	-
prop.picker_cb	-	-
prop.YEAR	GET	Get year
prop.MONTH	GET	Get month
prop.DAY	GET	Get day
prop.HOUR	GET	Get hour
prop.MINUTE	GET	Get minute

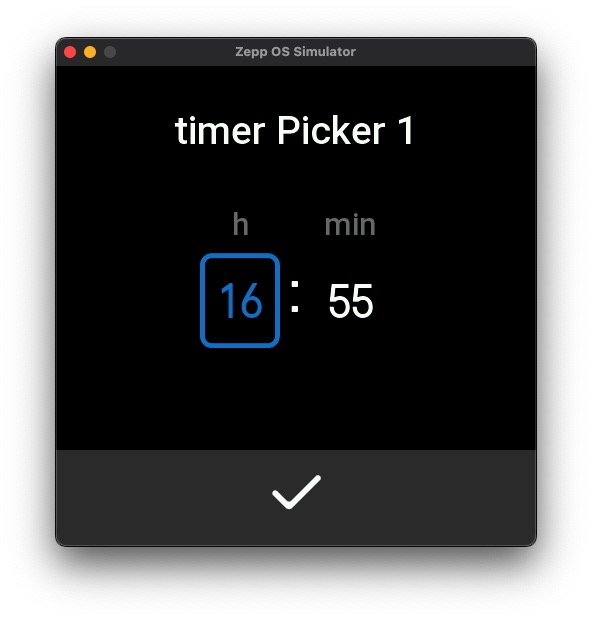

Code example

import { createWidget, widget, prop } from '@zos/ui'

const time_picker = createWidget(widget.WIDGET_TIME_PICKER, {
  type: 0, // 0: select time  1: select date
  style: 1,
  title: 'Time Picker',
  initHour: 16,
  initMin: 55,
  font_size: 45,
  select_font_size: 48,
  picker_cb: callbackFunc
})

function callbackFunc(picker, event_type, column, value_index) {
  console.log('timePickerCb: ' + event_type, 'column: ' + column, 'value_index: ' + value_index)
}
